| Model | ZL32-02 | ||||||||
| Working Voltage Range | DC：6-24V （If solar photovoltaic panel is used for power supply, parameters shall be provided: rated voltage, open circuit voltage, short circuit current） | ||||||||
| Rating Power | 6V：2-6W / 12V：3-6W / 24V：4-7W | ||||||||
| Static Water Head | 1.0-2.5M | ||||||||
| Static flow rate | 2.0-3.5Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：Weak acid, neutral, weak base. Amphibious use | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜35Decibel | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Solar water circulation system, small fountains, aquarium, warm water bed, diving pool irrigation, etc | ||||||||

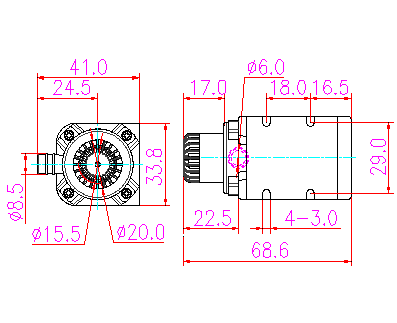

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet Filter hood、 Outlet Slip strip | ||
| 41 | 34 | 69 | IP68 | φ20 | φ15.5 | φ8.5 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
