| Model | ZL38-02 | ||||||||
| Working Voltage Range | DC;6-24V | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-7M | ||||||||
| Static flow rate | 5-9Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Diving | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜40Decibel | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Cold and hot compress circulation, small fountain, aquarium, etc | ||||||||

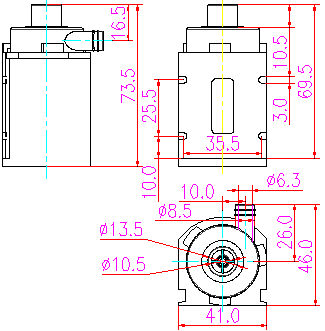

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Outlet Slip strip | ||
| 46 | 41 | 73.5 | IP68 | φ13.5 | φ10.5 | φ8.8 | φ6.3 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
