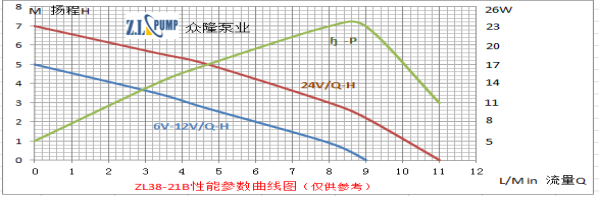

Model | ZL38-21BG | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-17W / 12V: 0-17W / 24V: 0-23W | ||||||||
Static Water Head | 0-7 M | ||||||||
Static Flow Rate | 0-11 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable on land (Non submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument＜40dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤100℃ (Three Phase controller in the outer, Aluminum alloy shell) | ||||||||
Application | Water heater shower, Electronic refrigerator, Washing Machine, Air-conditioning, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remark | |||||
Length（mm） | Width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet and outlet with footgrip | ||
62.5 | 48 | 85 | IP67 | φ15.5 | φ12 | φ10.5 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
