| Model | ZL38Y-11 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-6M | ||||||||
| Static flow rate | 3-8Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞1500hour | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、Submersible pump | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜40dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Tourism shower, RV, bathroom toilet, aquarium, etc | ||||||||

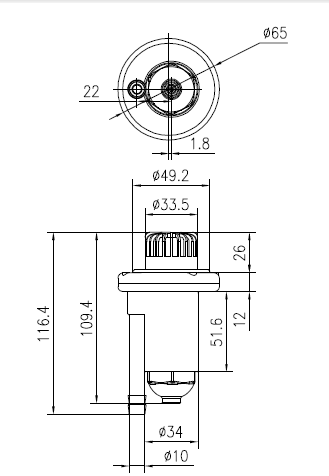

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Outlet Slip strip | ||
| 65 | 65 | 116.4 | IP68 | φ33.5 | φ11.5 | φ10 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
