| Model | ZL38-22 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：2-12W /12V：3-18W /24V：5-18W | ||||||||
| Static Water Head | 1-5M | ||||||||
| Static flow rate | 4-11Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Normal working condition, the water pump is 1 meter away from the tester<40dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Automobile water cycle, small fountain, aquarium, etc | ||||||||

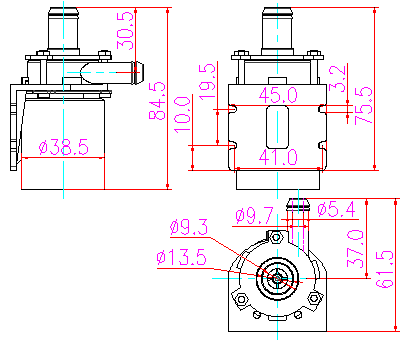

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet and outlet with anti slip strip | ||
| 61.5 | 45 | 84.5 | IP66 | φ13.5 | φ9.3 | φ9.7 | φ5.4 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
