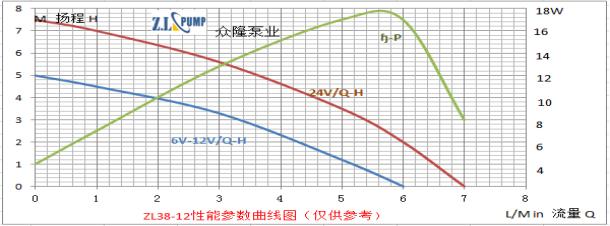

Model | ZL38-12 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-14W / 12V: 0-14W / 24V: 0-17W | ||||||||
Static Water Head | 0-7.5 M | ||||||||
Static Flow Rate | 0-7 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable in water (Submerged) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <40dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | ||||||||
Application | Medical care, Medical kit cold and hot compress, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remark | |||||
Length（mm） | width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet with filter hood Outlet with footgrip | ||
58 | 41 | 74 | IP68 | φ13.5 | φ10.5 | φ6.5 | φ5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
